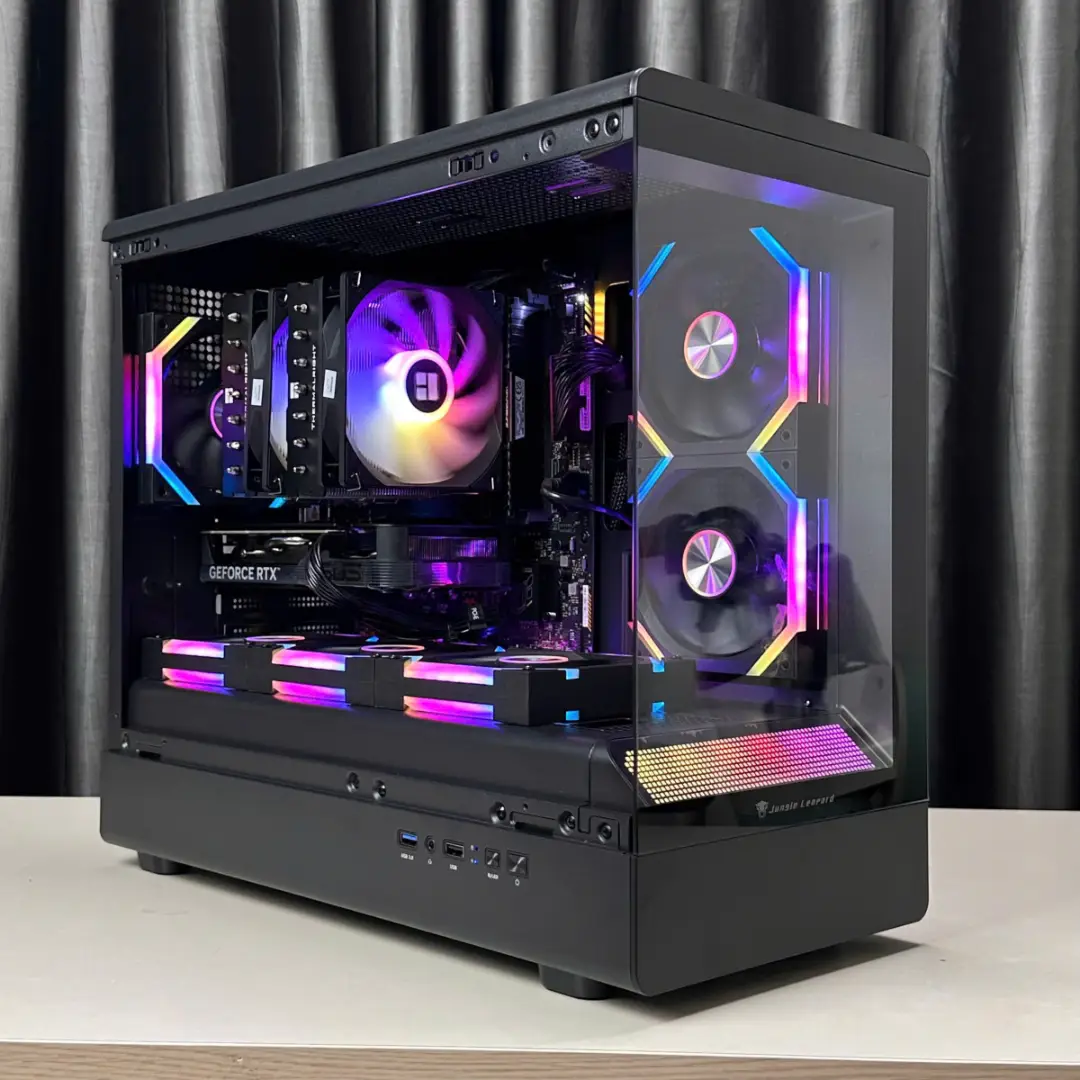

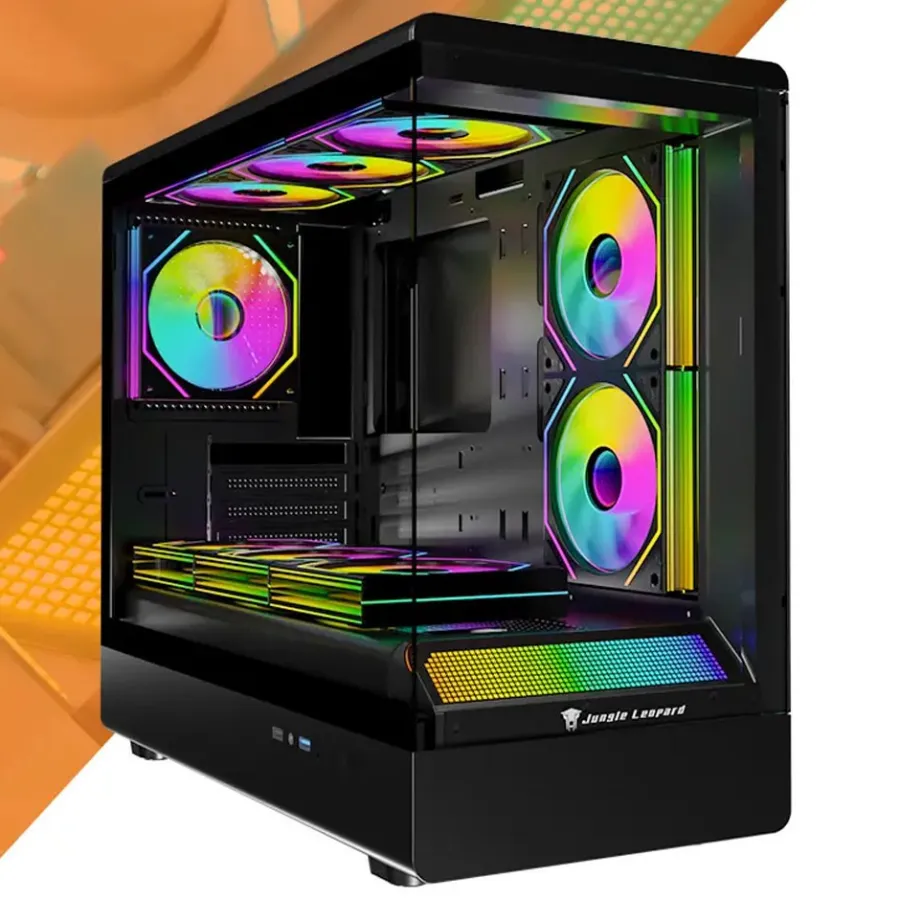

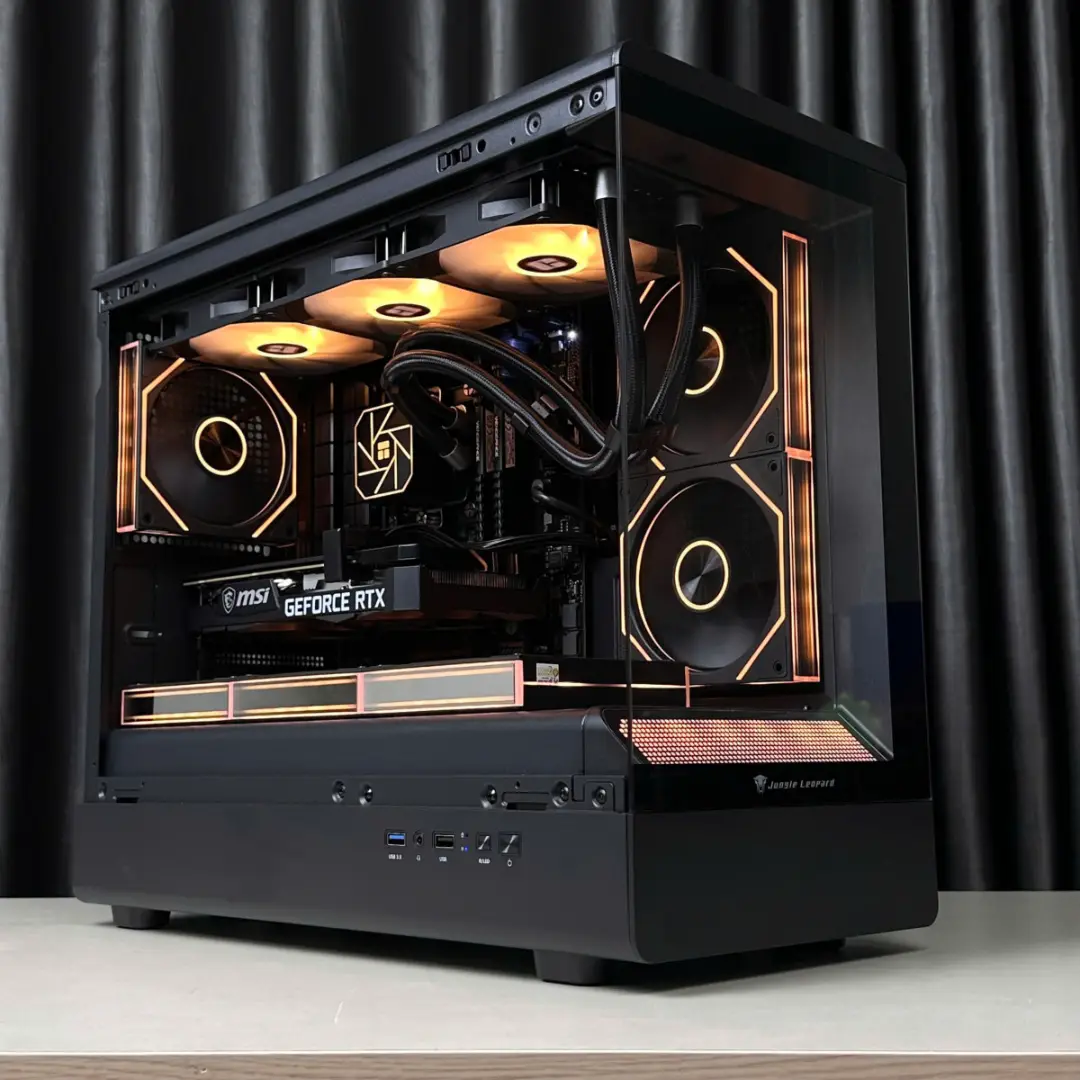

JUNGLE LEOPARD MS-01 Computer CASE

Micro ATX Case Specifications

Physical Build & Dimensions

• Product Size: 460(L) * 220(W) * 403(H) mm
• Net Weight: 5.15 KG
• Gross Weight: 6.15 KG
• Computer Case Type: Micro ATX Case
• Motherboard Compatibility: MATX / ITX
• Backline Space: ≤ 21mm
• Dust Filter: Magnetic filters located on the bottom and right side

Hardware Clearance

• Graphic Card (GPU) Limit: ≤ 420mm
• CPU Air Cooling Limit: ≤ 174mm
• Power Supply (PSU) Limit: ≤ 240mm
• PCI-E Slots: 4 Slots

Storage & I/O Interface

• 3.5-inch Hard Drive Bays: 2 * 3.5" HDD
• 2.5-inch Hard Drive Bays: 2 * 2.5" HDD/SSD
• I/O Ports: 1 * USB 3.0, 1 * USB 2.0, Combo Audio Jack

Cooling Support

• Fan Support:
• Top: 3 * 120mm or 2 * 140mm
• Side: 2 * 120mm
• Bottom: 3 * 120mm
• Rear: 1 * 120mm
• Liquid Cooling Support:
• Top: 360 / 280 / 240mm
• Side: 240mm
• Rear: 120mm
