Core & Performance Specs
- GPU: NVIDIA GeForce RTX 5060 Ti (GB206)
- Architecture: NVIDIA Blackwell (supports DLSS 4)
- CUDA Cores: 4608 units
- Boost Clock: 2602 MHz (Extreme Performance via MSI Center: 2617 MHz)
- Base Clock: 2407 MHz
- VRAM Size: 16GB
- Memory Type: GDDR7
- Memory Speed: 28 Gbps
- Memory Bus Width: 128-bit
- Memory Bandwidth: 448 GB/s
- Bus Interface: PCI Express Gen 5 x16 (uses x8)
- Display Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
- Power Consumption: 180W
- Recommended Power Connector: 1x 8-Pin connector
Physical & Cooling Features

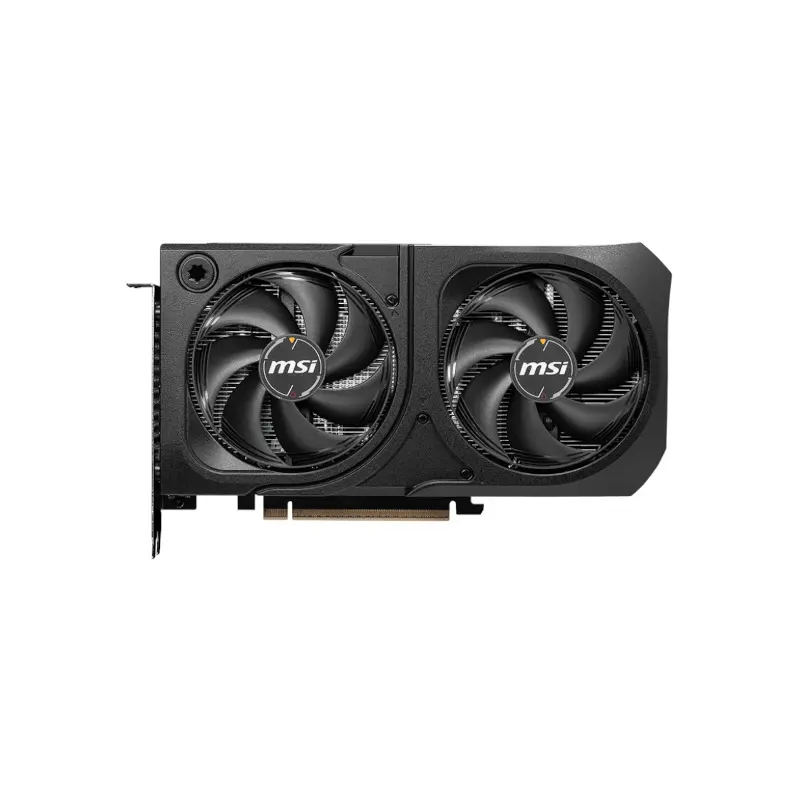

- Cooling Design: Dual-fan STORMFORCE / TORX fan setup with zero-frozr 0 RPM mode
- Backplate: Reinforced metal backplate with airflow vents
- Slot Size: Dual-slot
- Card Weight: 578 g
