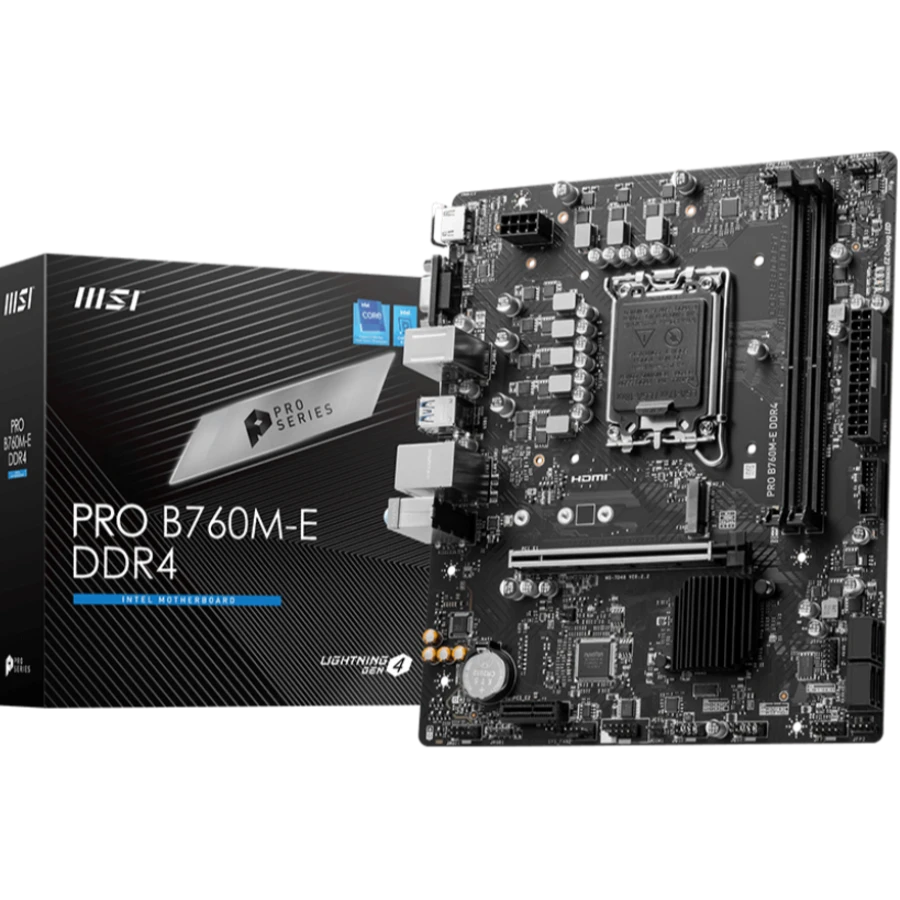

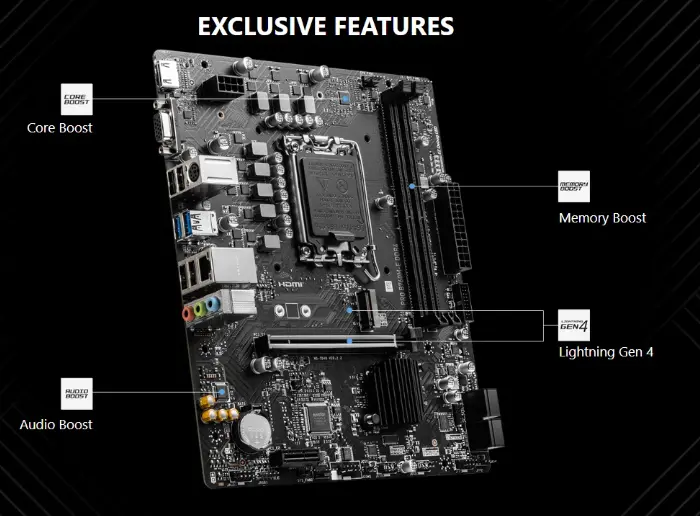

Core Specifications
- CPU Support: Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors (LGA 1700)
- Chipset: Intel B760
- Form Factor: Micro-ATX (200 mm x 236.16 mm)
- Slots: 2x DDR4 DIMM slots (Dual channel)
- Capacity: Up to 64GB
- Speed: Supports up to 4800+(OC) MHz
- Features: Supports Intel Extreme Memory Profile (XMP)
Expansion and Graphics Slots
- PCIe x16: 1x PCIe 4.0 x16 slot (from CPU)
- PCIe x1: 1x PCIe 3.0 x1 slot (from Chipset)
- Display Outputs: 1x HDMI 1.4 (supports 4K at 30Hz) and 1x VGA port (requires processor with integrated graphics)
- M.2 Slots: 1x M.2 Gen4 x4 64Gbps slot (supports PCIe 4.0 x4 and SATA modes, sizes 2280/2260/2242)
- SATA Ports: 4x SATA 6Gbps ports (SATA5 is unavailable if an M.2 SATA SSD is used in the M2_1 slot)
- USB Ports:
- Rear: 2x USB 3.2 Gen 1 5Gbps Type-A, 4x USB 2.0
- Front: 2x USB 3.2 Gen 1 5Gbps Type-A, 4x USB 2.0
- LAN: Realtek RTL8111H Gigabit LAN
- Audio: Realtek ALC897 Codec 7.1-Channel High Definition Audio with Audio Boost
