CPU Support: Intel LGA 1700 socket. It officially supports 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors up to a 65W TDP. (Note: Pairing it with power-hungry "K-series" i7 or i9 chips is not recommended due to limited VRM power delivery). [1, 2]
Memory:2 x DIMM slots supporting up to 64GB of DDR4 non-ECC memory at speeds up to 3200MHz. [1]
Expansion Slots:
1 x PCIe 4.0 x16 slot (featuring ASUS SafeSlot Core for heavier graphics cards).
1 x M.2 slot (Key M), operating at PCIe 3.0 x4 speeds (up to 32Gbps).
4 x SATA 6Gb/s ports (Note: The R2.0 revised model reduces this to 2 x SATA ports). [1, 2, 3]
Rear I/O Connectivity:

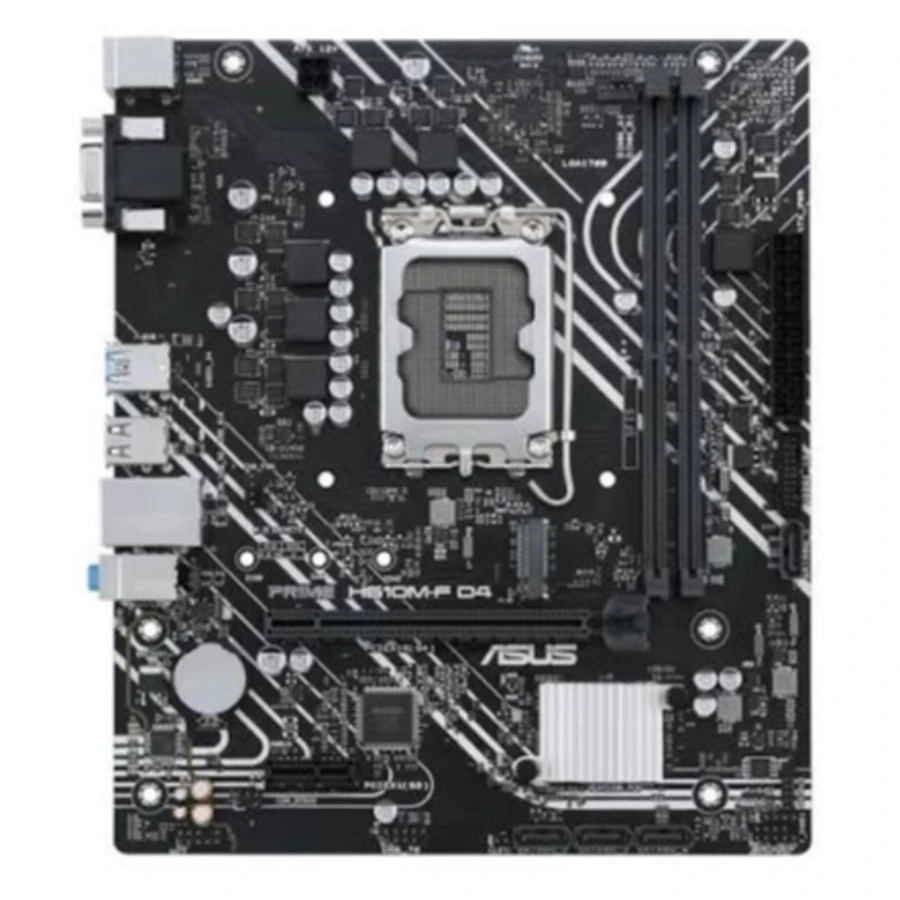

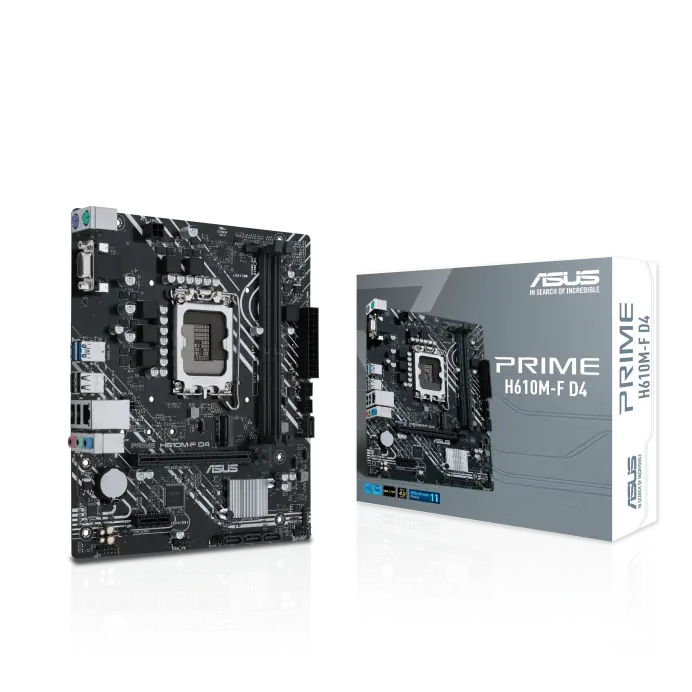

1 x D-Sub (VGA) port for integrated legacy graphics (Note: Check your specific sub-variant; versions like the H610M-F D4 R2.0 swap this for an HDMI port).
2 x USB 3.2 Gen 1 ports (Type-A) and 4 x USB 2.0 ports.
