Core Specifications

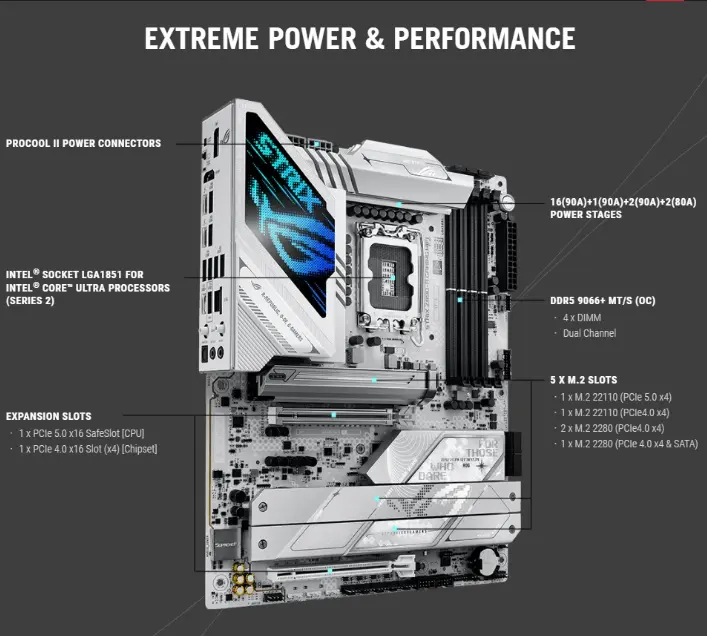

- CPU Socket: LGA 1851 (Supports Intel Core Ultra Processors - Series 2)
- Chipset: Intel Z890
- Form Factor: ATX
- Power Design: 16 + 2 + 1 + 2 power stages (90A SPS)
- Memory Slots: 4 x DIMM slots, max. 256GB, DDR5
- Storage Support: 5 x M.2 slots and 4 x SATA 6Gb/s ports
Expansion and Connectivity
- Expansion Slots: PCIe 5.0 x16 safe slots
- Networking: Wi-Fi 7 (802.11be) 2x2 and Intel 2.5Gb Ethernet
- Rear USB / Thunderbolt: 2 x Thunderbolt 4 ports (USB Type-C), multiple USB 10Gbps ports (including one with up to 30W PD Fast-charge)

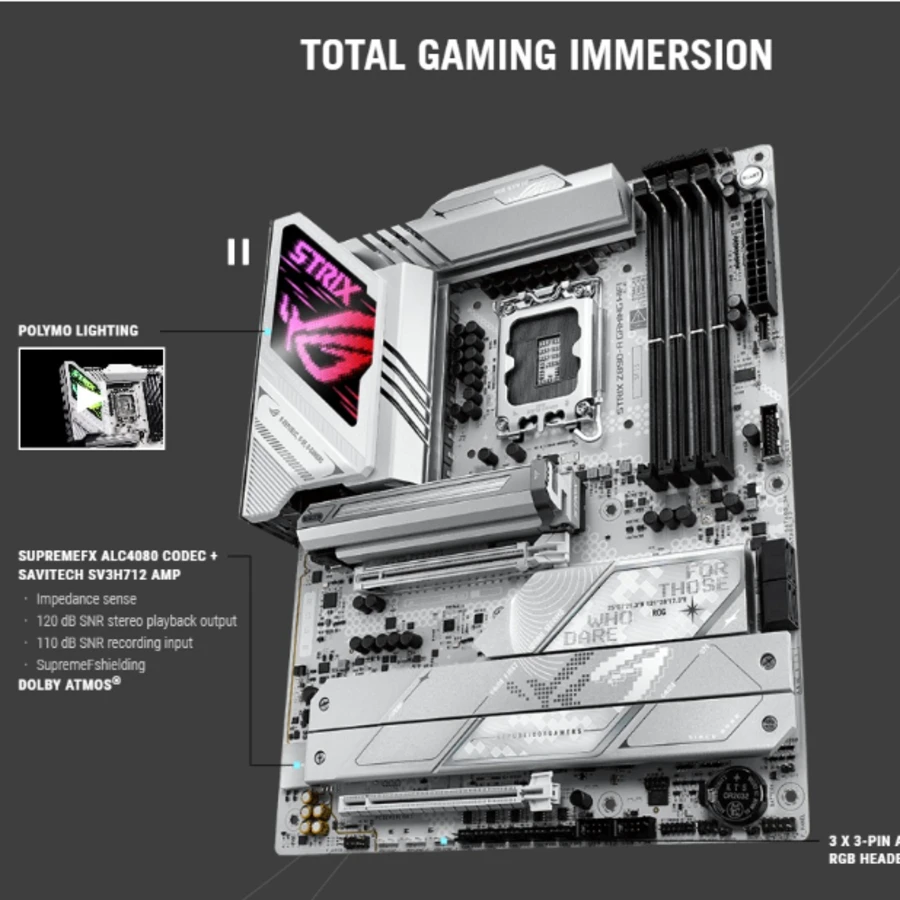

- Audio: ROG SupremeFX 7.1 High Definition Audio CODEC (ALC4080)
