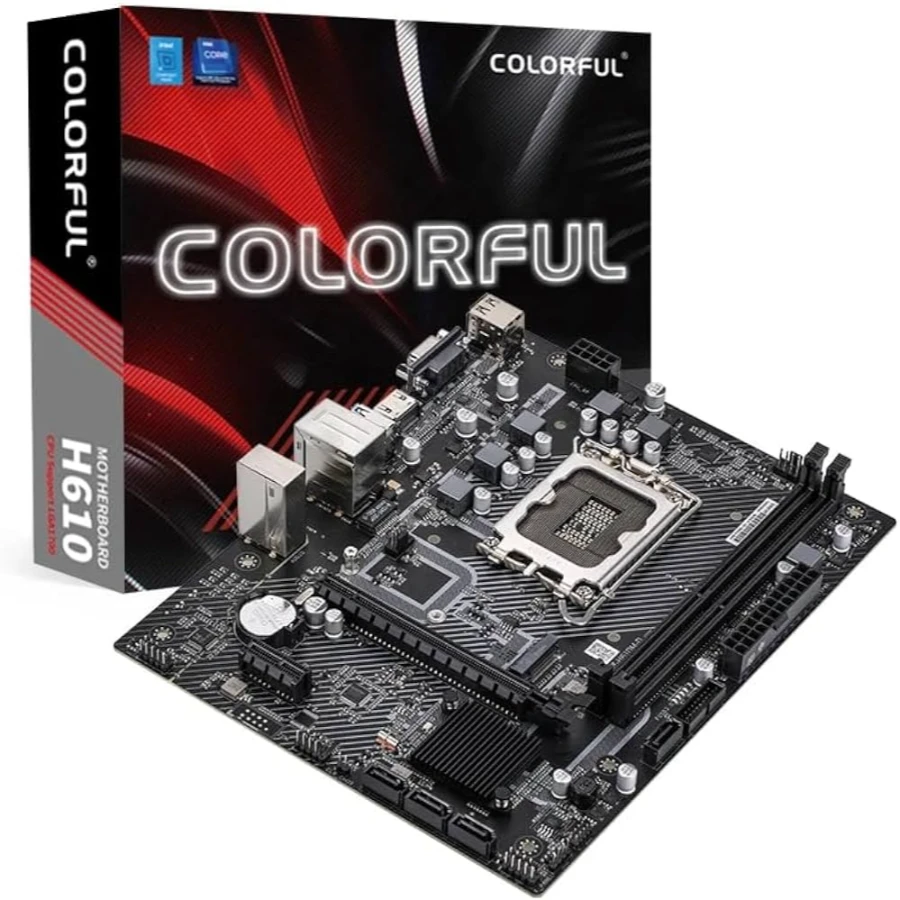

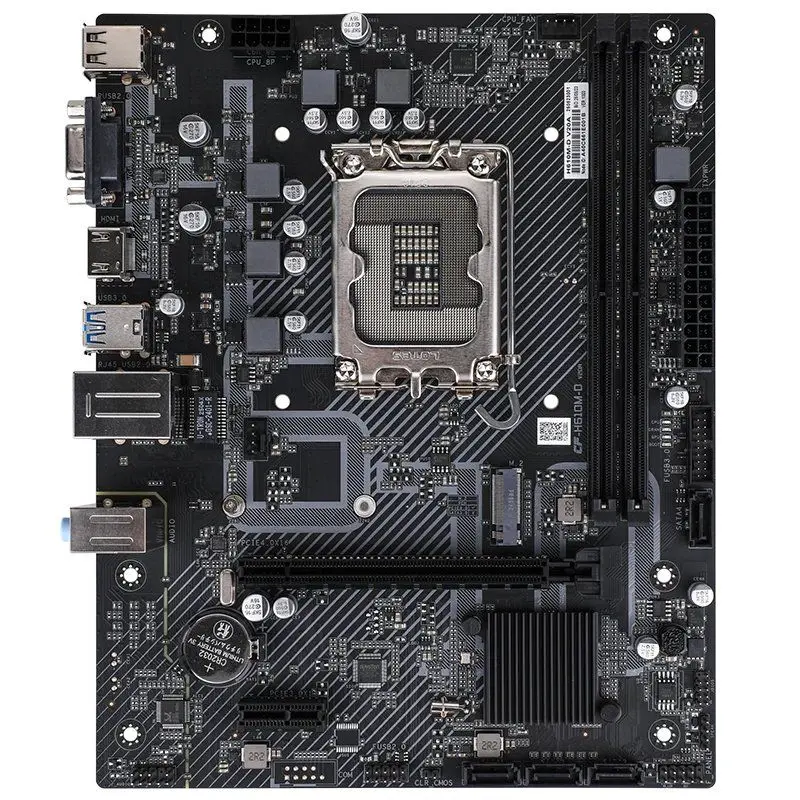

Core Specifications
- CPU Socket: LGA1700 (Supports Intel 14th, 13th, and 12th Gen Core, Pentium, and Celeron)
- Chipset: Intel H610
- Form Factor: Micro-ATX (M-ATX, approx. 235mm x 205mm)
- Memory Support: 2x DDR4 DIMM slots, dual-channel up to DDR4-3200MHz, max 64GB (up to 32GB per slot)
- Storage Ports: 1x PCIe 3.0 x4 M.2 slot and 4x SATA 3.0 (6Gb/s) ports
- Expansion Slots: PCIe graphics card slot and a PCIe 3.0 x1 slot
- Display Outputs: 1x HDMI and 1x VGA (D-Sub)
- Networking: Realtek 8111H Gigabit (1000M) LAN
- Audio: Realtek ALC897 sound card chip supporting up to 5.1 channels
- USB Ports (Rear): 2x USB 3.2 Gen 1 Type-A, 4x USB 2.0
- USB Ports (Front/Internal): Expandable via headers for 2x USB 3.2 Gen 1 and 2x USB 2.0
