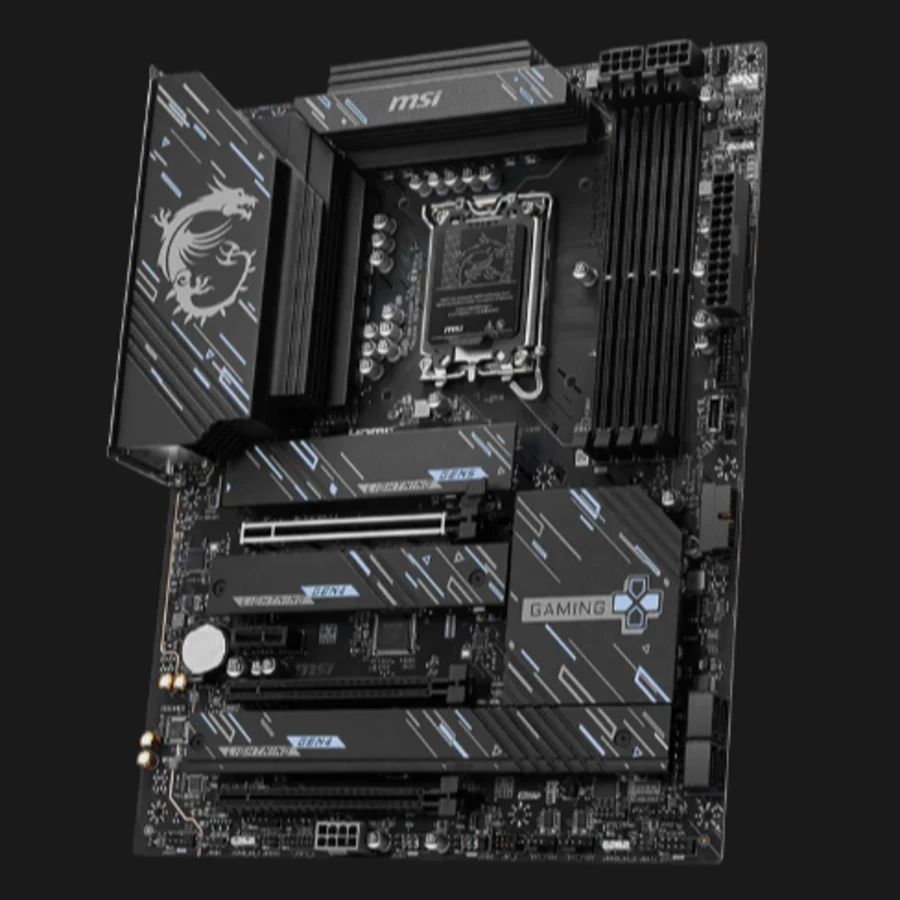

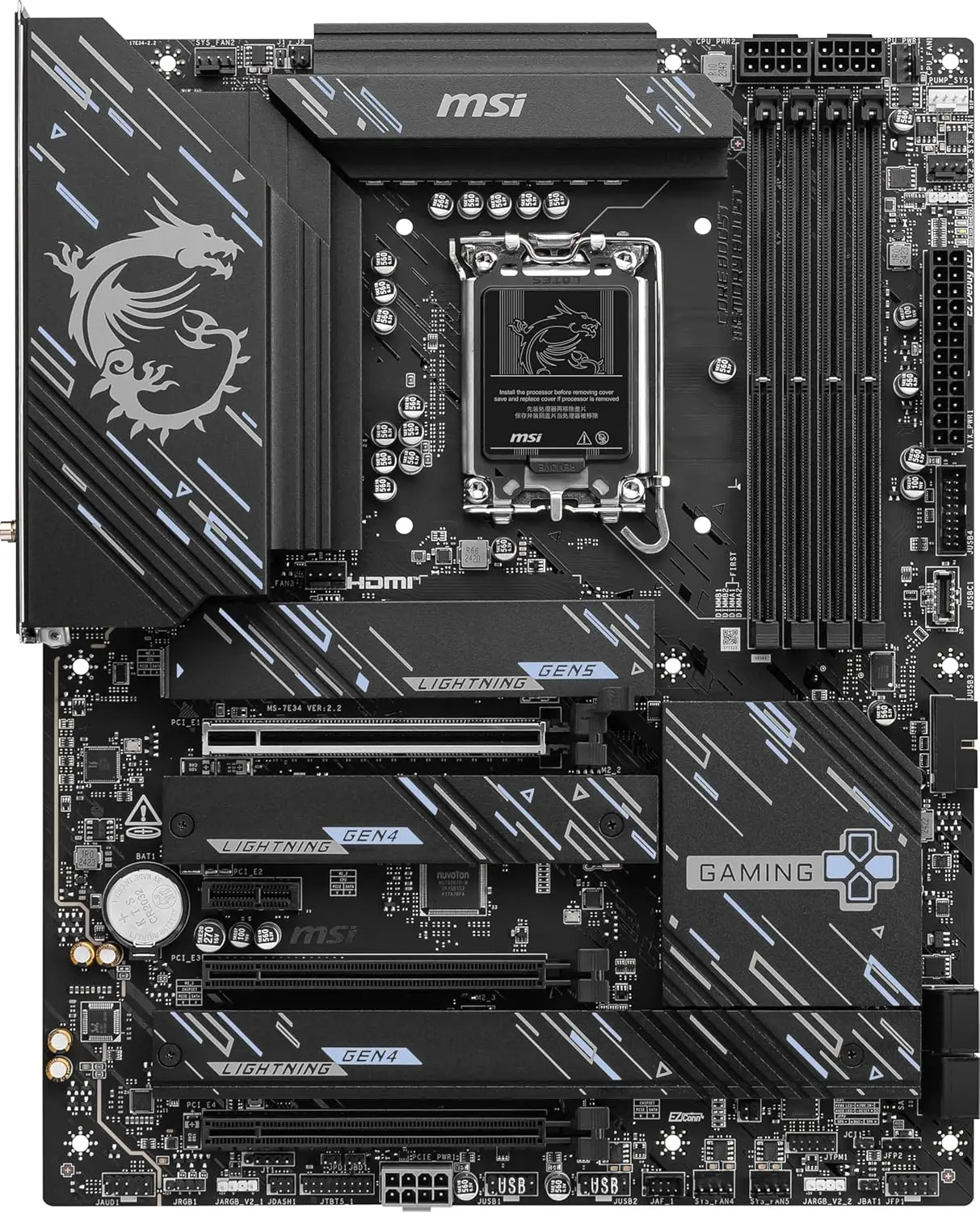

Core Hardware Specifications
- CPU Socket: LGA 1851 supporting Intel Core Ultra (Series 2) processors.
- Chipset: Intel Z890.
- Memory: 4x DDR5 slots, supporting up to 256GB with speeds up to 9200+ MT/s via overclocking.
- Form Factor: ATX.
- Expansion Slots:
- 1x PCIe 5.0 x16 slot
- 2x PCIe 4.0 x16 slots (x4 mode)
- 1x PCIe 4.0 x1 slot
- M.2 Storage Slots:
- 1x M.2 Gen5 x4 (128Gbps) slots.
- 3x M.2 Gen4 x4 (64Gbps) slots.
Connectivity and Networking
- Networking: Intel Killer 5G LAN controller and Intel Killer Wi-Fi 7 BE1750x.
- Wireless: Wi-Fi 7 and Bluetooth 5.4 (Note: specific regional variants like Wi-Fi 6E may exist depending on local stock).
- Thunderbolt / USB: 1x Thunderbolt 4 Type-C port (40Gbps) on the rear I/O, alongside additional high-speed USB 20Gbps and 10Gbps ports.
- Audio: 7.1-Channel High Definition Audio with Audio Boost.
